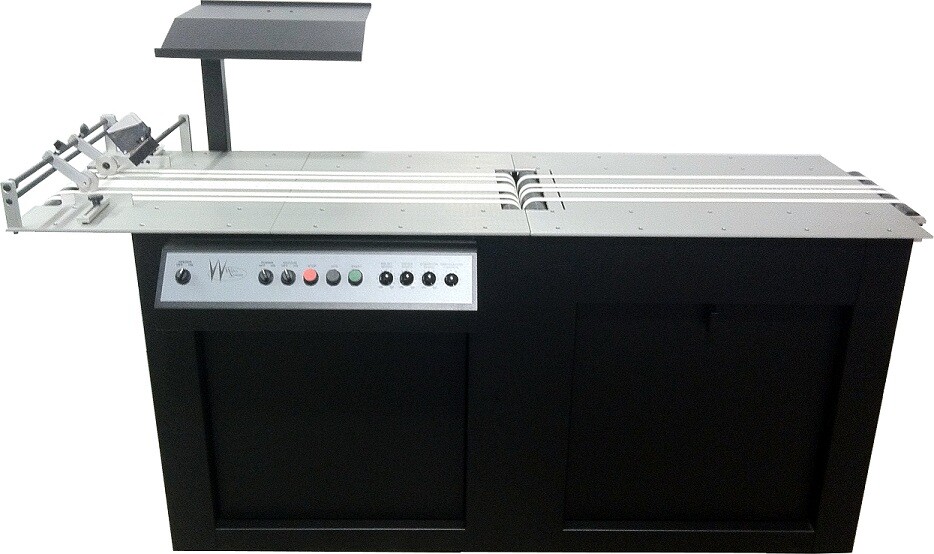

Split Base Vacuum Transports



Inkjet Table: 42"L x 23.5"W
Dryer Table: 24"L x 23.5"W
Physical: 66"L x 23.5"W x 33-36"H



Inkjet Table: 42"L x 23.5"W
Dryer Table: 35"L x 23.5"W
Physical: 655.5"L x 23.5"W x 33-36"H


  • Full Frame Construction
  • Adjustable Infeed Product Guides
  • Adjustable Infeed Rollers
  • Feeder Interlock Switch
  • Variable Speed Transport
  • Vacuum Belts
  • Integrated VSC Conveyor Controls
  • 12" Wide Transport Rollers
  • Integrated VSC Conveyor Controls
  • Independent Vacuum Control

Quality Components

  • Heavy Duty Gear Drive Motors
  • Commercial Regenerative Blower
  • Large Diameter Shafts
  • Sealed Shaft Locking Collar Bearings

Print System

Walco Systems offers multiple print technologies in varying configurations to fit your needs.

Drying System

Refer to the Inkjet Drying Systems page to select a dryer.


Conveyor Sort/Speed Up

With conveyor controls integrated and customizable control in the software, sort/speed up is a viable alternative to expensive stackers/sorters.

Feeder Pause Sort

The feeder can be paused to create a break on the conveyor for sorting.

Speed Following

Allows Walco Systems feeders and transports to maintain matching belt speeds, using one speed control.


The spacious articulating platform is large enough to accommodate a full size monitor & keyboard.
