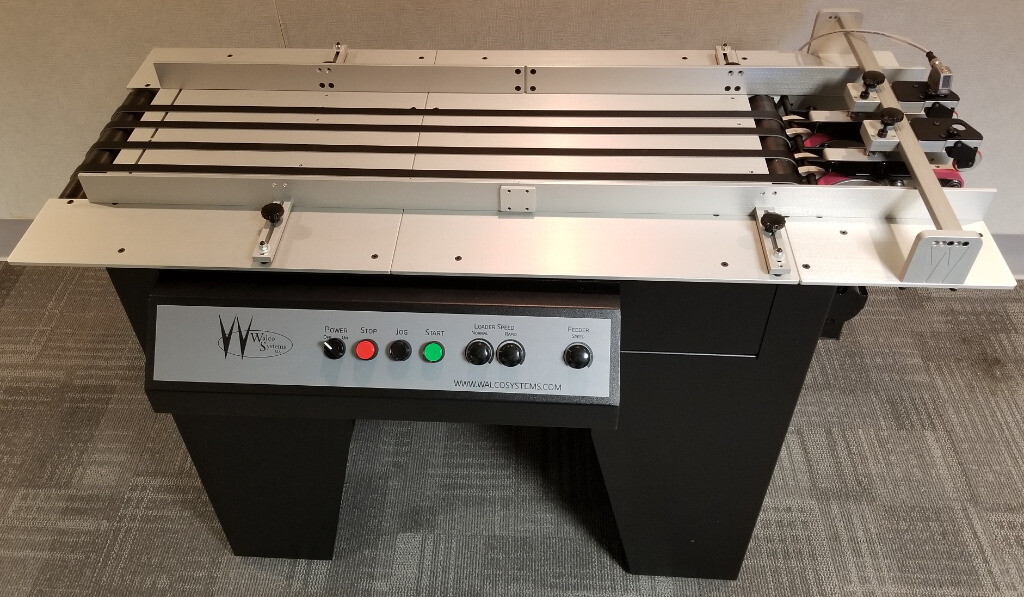

SL204 Autoloading Shingle Feeder

Home   ›   Products   ›   Feeders   ›   SL Series   ›   SL204 Autoloading Shingle Feeder

The SL204 feeder was created to feed the most difficult to feed products. From 1 mil poly bags to stuffed envelopes and everything in between, this feeder can handle anything. Patent pending separator geometry allows the SL204 to delicately and accurately separate products once considered impossible on a friction feeder. A generous loading section frees up operators to tend to other areas without worry.

View SL Series Demos on Youtube


Material Size: Min. 3"W x 4"L - Max 19.5"W x 28"L
Material Thickness: 3/4" Max (In Standard Configuration)
Electrical: 110 VAC 1-Phase 10 Amp Circuit
Interlock: Dry Contact (Low Volt) Standard
Operator Controls: Power (on/off), Stop, Jog, Start, Loader Speeds, Feed Speed
Physical: 53"L x 28.5"W x 33-36" H
