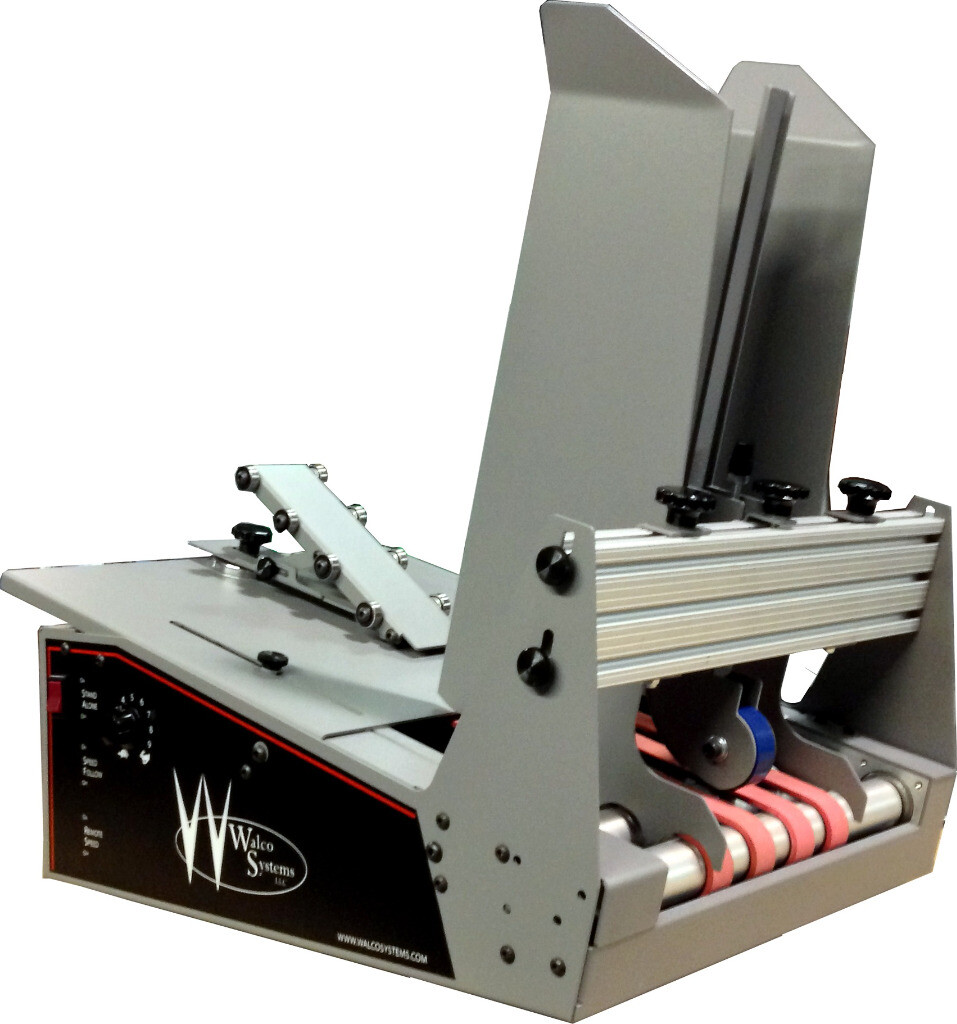

F110E
The Walco Systems F110E features a simple and robust design capable of feeding a wide variety of products. Adjustable belts and separator provide an exceptional degree of setup precision. Sealed shaft locking collar bearings provide low maintenance costs, and friction belt change is a snap. A range of options are available, such as an acceleration table, and seamless integration with standard Walco Systems equipment.
Like all Walco Systems products, the Evolution series feeders are designed for the high capacity use demanded by today's commercial environment.
Specifications
F110E
| Material Size: | Min. 2"W x 4"L - Max. 11"W x 18"L |
| Material Thickness: | 1.125" Max (Standard) |
| Electrical: | 110 VAC 1-Phase 5 Amp Circuit |
| Interlock: | Dry Contact (Low Volt) Standard |
| Physical: | 18.1"L x 15.0W x 21.25"H |
Features
- Quick and Easy Setup
- Variable Speed
- Independently Adjustable Belts & Separator
- Dual Durometer Separator
- Adjustable Exposure Table
- Simple Under 5 Min. Belt Replacement
- Feeds Wide Variety of Products
- High Capacity Feed Hopper
- Heavy Gauge Steel Construction
- Rotatable Separator
- Sealed Shaft Locking Collar Bearings
- Magnetic Rear Adjustable Roller Wedge
Options:
Articulating Acceleration Assembly
Creates separation between pieces before leaving the feeder.
Remote Speed POT
Feeder Speed control POT located on a Walco transports base, allows feeder speed control from the same location as transport base and conveyor speed.
Speed Following
Allows Walco Systems feeders to follow transports base belt speeds, using one speed control.
