240BT

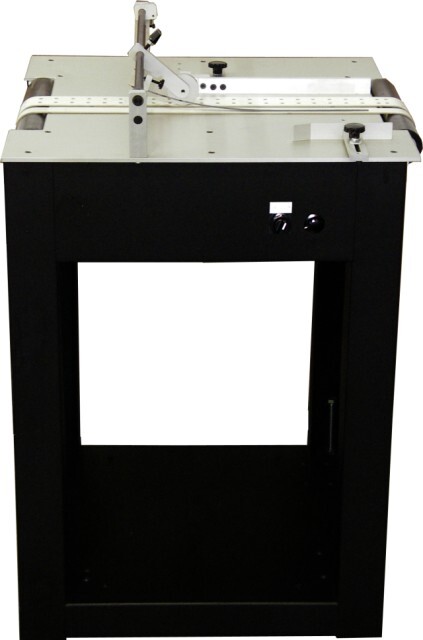

The 240BT Bump Turn provides an inline solution for rotating products 90 degrees from their infeed orientation. This unit is capable of turning a large range of material sizes and thicknesses left or right.
Easy integration coupled with versatility makes it the right choice for your turning application requirements.
Specifications
| Turn Direction: | Left or Right |
| Material Size: | Min. 5"L x 3"W - Max 8.5"W x 11"L |
| Material Thickness: | Up To 1/2" Standard |
| Physical: | 24"L x 23.5"W x 33-36" H |
| Electrical: | 110 VAC Single Phase 10 Amp Circuit |
Features
- Quick and Easy Setup
- Non-Proprietary Components
- Variable Speed Transport
- Adjustable Belts & Guides
Uncompromising Drivetrain
- Large Diameter Steel Shafts
- Steel Drive Pulleys
- 12" Wide Steel Rollers
- Sealed Shaft Locking Collar Bearings
